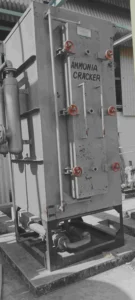

Ammonia Cracker Unit – Generate Hydrogen Gas up to 99.9% Purity Introduction

An Ammonia Cracker Unit is a highly efficient system designed to produce hydrogen gas by dissociating ammonia (NH₃) into hydrogen (H₂) and nitrogen (N₂) through a catalytic process. At AmsaAir Engineering Pvt. Ltd., we manufacture reliable and energy-efficient ammonia cracker systems tailored for industrial applications where pure and dry hydrogen gas is required.

How the Ammonia Cracker Unit Works

The working principle of an ammonia cracker involves passing ammonia gas over a nickel-based catalyst at a temperature of around 850°C. The chemical reaction is simple:

2NH₃ → 3H₂ + N₂

The resulting gas mixture typically contains 75% hydrogen and 25% nitrogen, which can be further purified using hydrogen purifiers or molecular sieves if higher hydrogen purity is required.

Technical Specifications

Parameter	Specification
Hydrogen Purity	Up to 99.9% with Purifier
Operating Temperature	800°C – 900°C
Capacity Range	1 Nm³/hr to 500 Nm³/hr
Feed Gas	Anhydrous Ammonia (NH₃)
Catalyst Type	Nickel-Based
Dew Point	Up to –60°C
Power Requirement	Low Energy Consumption
Design Type	Skid Mounted / Modular Compact

Applications of Ammonia Cracker Units

Ammonia Cracker Units are used across multiple industries where hydrogen is a key process gas. Major Applications include:

Heat Treatment Furnaces
Bright Annealing and Sintering
Galvanizing and Brazing Processes
Reduction of Metal Oxides
Hydrogenation Reactions in Chemical Industries
Protective Atmosphere in Metallurgical Operations

Key Features

Compact & Modular Design
Fully Automatic Control System
High Catalyst Life for Long-term Efficiency
Low Power & Maintenance Requirement
Integrated Purifier for High-Purity Hydrogen
Easy Installation with Skid-Mounted Setup
Built-in Safety Controls and Monitoring Sensors

Benefits of Choosing AmsaAir Engineering

At AmsaAir Engineering Pvt. Ltd., our Ammonia Cracker Units are designed with precision engineering and robust quality standards to ensure safe, reliable, and continuous operation. Why choose us:

24/7 Technical & Service Support
AMC & CMC Contracts for Long-term Reliability
Custom Capacity Designs as per Client Requirements
Energy-efficient and Environmentally Safe Operation

Maintenance & Support

Regular maintenance ensures consistent hydrogen purity and efficiency. We provide Annual Maintenance Contracts (AMC) and Comprehensive Maintenance Contracts (CMC) to support your system with timely servicing, catalyst replacement, and performance optimization.

Conclusion

The Ammonia Cracker Unit from AmsaAir Engineering is the perfect solution for industries requiring continuous hydrogen generation at high purity. With advanced automation, safety systems, and superior design, our cracker units ensure maximum efficiency, minimal downtime, and long operational life. Read More PSA and VPSA Oxygen Gas Plants MS, DX, and CU-DX Modules for PSA Nitrogen Gas Plants
