Introduction
An Ammonia Cracker Unit is a proven and cost-effective solution for on-site hydrogen gas generation. It uses ammonia as a raw material and converts it into a mixture of hydrogen (Hā) and nitrogen (Nā) through a controlled thermal cracking process.
AmsaAir Engineering Pvt. Ltd. designs and manufactures advanced Ammonia Cracker Units that are safe, efficient, and suitable for continuous industrial operation. These systems are widely used in heat treatment, metallurgy, brazing, annealing, and other hydrogen-based processes.
What is an Ammonia Cracker Unit?
An Ammonia Cracker Unit is an efficient and reliable hydrogen generation system that produces hydrogen gas by decomposing anhydrous ammonia (NHā) at high temperature in the presence of a suitable catalyst. This technology is widely used in industries where a continuous and economical source of hydrogen is required.
In the ammonia cracking process, ammonia gas is heated inside a specially designed reactor. When ammonia passes over the catalyst at elevated temperature, it breaks down into hydrogen (Hā) and nitrogen (Nā) gases. This chemical reaction is well-established, stable, and suitable for continuous industrial operation.
Chemical Reaction:
2NHā ā 3Hā + Nā
The resulting gas mixture typically contains a high percentage of hydrogen along with nitrogen. Depending on the application, this hydrogen-rich gas can be used directly in processes such as heat treatment, annealing, brazing, and protective atmosphere generation, or it can be further purified to obtain higher hydrogen purity as per specific process requirements.
Ammonia Cracker Units are preferred due to their cost-effectiveness, on-site generation capability, and reduced dependency on hydrogen cylinders, making them a practical solution for many industrial applications.
CU De-Oxo Nitrogen Gas Plant
De-Oxo Nitrogen Gas Plant
Ammonia Cylinder & Manifold System
The ammonia supply system is a critical part of the Ammonia Cracker Unit.

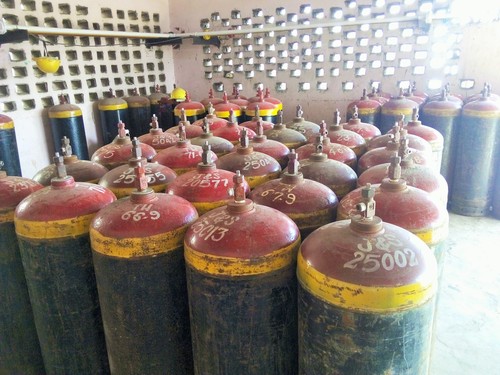

- Standard anhydrous ammonia cylinders are used as the primary feed source
- Cylinders are installed in a safe, well-ventilated, and designated storage area
- Proper cylinder mounting and support arrangements are provided for stability
- Equipped with pressure regulators, isolation valves, and safety fittings
- Designed and installed as per industrial safety standards and guidelines
- Easy access is provided for inspection, replacement, and maintenance
- Compatible with manual or automatic manifold changeover systems
- Multiple cylinders connected through a manifold arrangement
- Ensures continuous and uninterrupted ammonia supply
- Manual or automatic changeover options are available
- Pressure regulation and safety valves included
The manifold system allows stable feed pressure to the cracker unit, ensuring smooth and reliable operation.
- Hydrogen Output Purity: Up to 75% Hā (balance Nā)
- Ammonia Feed: Liquid / Gaseous (Cylinder-based)
- Operating Temperature: High-temperature catalytic cracking
- Operating Mode: Continuous & Fully Automatic
- Capacity Range: As per customer requirement
- Control System: PLC / HMI-based
- Safety Systems: Gas leak detection, pressure & temperature protection
- Installation Type: Skid-mounted / Containerized
Power Supply: 415V, 50Hz, 3-Phase
- Continuous and reliable hydrogen generation
- Fully automatic operation with PLC control
- Efficient ammonia cracking with low losses
- Robust reactor design for long catalyst life
- Low operating and maintenance cost
- Safe handling of ammonia with multiple safety interlocks
- Compact design for easy installation
- Suitable for 24Ć7 industrial operation
- Cost-effective alternative to bottled hydrogen
- On-site hydrogen generation reduces logistics dependency
- Stable and continuous gas supply
- Easy integration with furnaces and gas distribution systems
- High system reliability and long service life
- Lower operating cost compared to hydrogen cylinders
- Ammonia cylinder manifold with auto changeover
- Gas cooling and conditioning system
- Online temperature & pressure monitoring
- PLC-based automation with data logging
- Containerized or skid-mounted design
- Integration with downstream gas purification systems
- AMC & CMC service packages

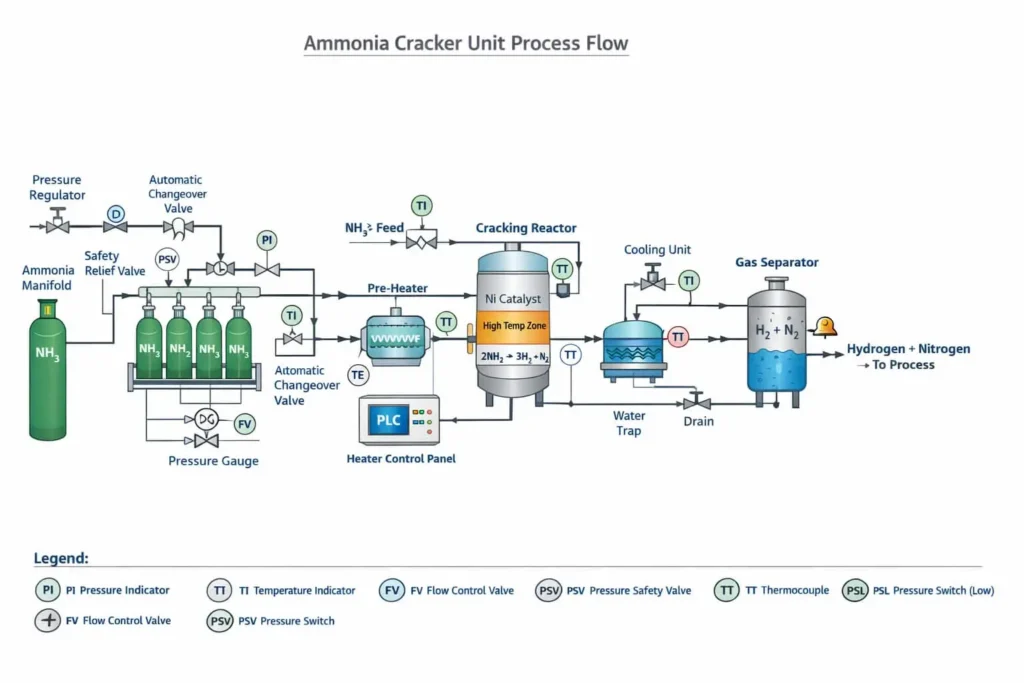

Working Principle of Ammonia Cracker Unit
- Ammonia from cylinders flows through the manifold system
- Ammonia enters the pre-heater and cracking reactor
- At high temperatures, ammonia decomposes over the catalyst
- Hydrogen-nitrogen gas mixture exits the reactor
- Gas is cooled and conditioned before use
- Output gas is supplied directly to the process or downstream systems
Applications of the Ammonia Cracker Unit
- Heat Treatment & Annealing Furnaces
- Brazing & Sintering Applications
- Metal Processing Industry
- Electronics & Electrical Components
- Glass Manufacturing
- Specialty Chemical Processes
- Hydrogen-based protective atmosphere generation
Why Choose AmsaAir Engineering Ammonia Cracker Unit?
AmsaAir Engineering Pvt. Ltd. offers custom-engineered Ammonia Cracker Units designed as per customer process requirements.
- Advanced engineering & proven design
- High-quality industrial components
- Focus on safety, efficiency, and reliability
- On-site installation & commissioning
- AMC / CMC support for long-term performance
- Pan-India service and technical support
Conclusion
An Ammonia Cracker Unit is an ideal solution for industries requiring a continuous, reliable, and economical hydrogen source. With a well-designed ammonia cylinder and manifold system, robust cracking reactor, and advanced automation, AmsaAir Engineering delivers safe and high-performance hydrogen generation systems for demanding industrial applications.
š Contact AmsaAir Engineering Pvt. Ltd. today to get a customized Ammonia Cracker Unit for your process.
