CU De-Oxo Nitrogen Gas Plant | 99.9999% High Purity Nitrogen Generator

Parameter	Specification
Nitrogen Purity	Up to 99.9999% (≤1 PPM O₂)
Oxygen Content	≤1 PPM
Nitrogen Flow Range	As per customer requirement
Operating Pressure	4 – 30 Bar (customizable)
Catalyst Type	Copper (CU) Catalyst
Control System	PLC / HMI based
Operation Mode	Fully Automatic
Power Supply	415V / 50Hz / 3 Phase
Installation Type	Skid-mounted / Containerized

Ultra-High Nitrogen Purity Output
Produces nitrogen gas with purity up to 99.9999%, suitable for critical and sensitive industrial processes.
Extremely Low Oxygen Content
The advanced copper catalyst (CU) de-oxidation system reduces oxygen level to ≤ 1 PPM, ensuring consistent quality.
Fully Automatic & Continuous Operation
Designed for 24×7 uninterrupted operation with no manual intervention during normal working conditions.
Optimized Hydrogen Consumption
A precisely controlled hydrogen dosing system ensures minimum hydrogen usage with maximum oxygen removal efficiency.
Energy-Efficient Plant Design
Low power consumption and optimized process flow help reduce overall operating cost.
Compact Skid-Mounted / Modular Construction
Space-saving design allows easy installation, relocation, and fast commissioning.
High Safety & Process Reliability
Built-in safety interlocks, alarms, and fail-safe logic ensure safe handling of hydrogen and oxygen reactions.
Low Maintenance & Long Service Life
Robust construction, premium components, and easy access to catalysts and valves minimize maintenance effort.
Advanced Control Options
Available with PLC-HMI based fully automatic control or semi-automatic operation as per customer preference.
Remote Monitoring & Mobile Access (Optional)
Plant performance, alarms, and operating status can be monitored and controlled directly from a mobile phone or remote system.

Capacity with Purity Range

Nitrogen Capacity (Nm³/hr)	Achievable Purity
5 – 50 Nm³/hr	Up to 99.9999%
50 – 200 Nm³/hr	Up to 99.9999%
200 – 1000 Nm³/hr	99.99% – 99.9999%
1000 – 5000 Nm³/hr	Up to 99.999%

Capacity can be designed from low flow laboratory applications to high-capacity industrial requirements, based on process demand.

Nitrogen Storage Tank
Buffer storage for stable supply and peak demand handling.
High-Pressure Booster Compressor
Suitable for cylinder filling and high-pressure process applications.
Cylinder Filling Manifold System
Manual or automatic manifold options for multiple cylinders.
Online Oxygen Analyzer
Real-time monitoring to ensure oxygen level ≤1 PPM.
Dew Point Monitoring System
Continuous moisture measurement for ultra-dry nitrogen output.
Remote Monitoring & Mobile-Based Plant Control (Optional)
Complete plant operation, alarms, and performance data are accessible on your mobile phone or remote system.
Containerized or Skid-Mounted Plant Design
Compact, plug-and-play solution for fast installation and relocation.
Integration with Existing Air Compressor & Dryer System
Seamless connection with already installed air preparation equipment.
Customized Flow Rate, Purity & Operating Pressure
Plant configuration designed as per the exact process requirement.
Advanced Safety Interlocks & Alarm Systems
Enhanced safety for hydrogen handling and the de-oxidation process.
PLC-Based Automation with Data Logging
Automatic operation with historical data recording and analysis.
AMC & CMC Service Packages
Planned maintenance support to ensure long-term reliability and zero downtime.

Introduction

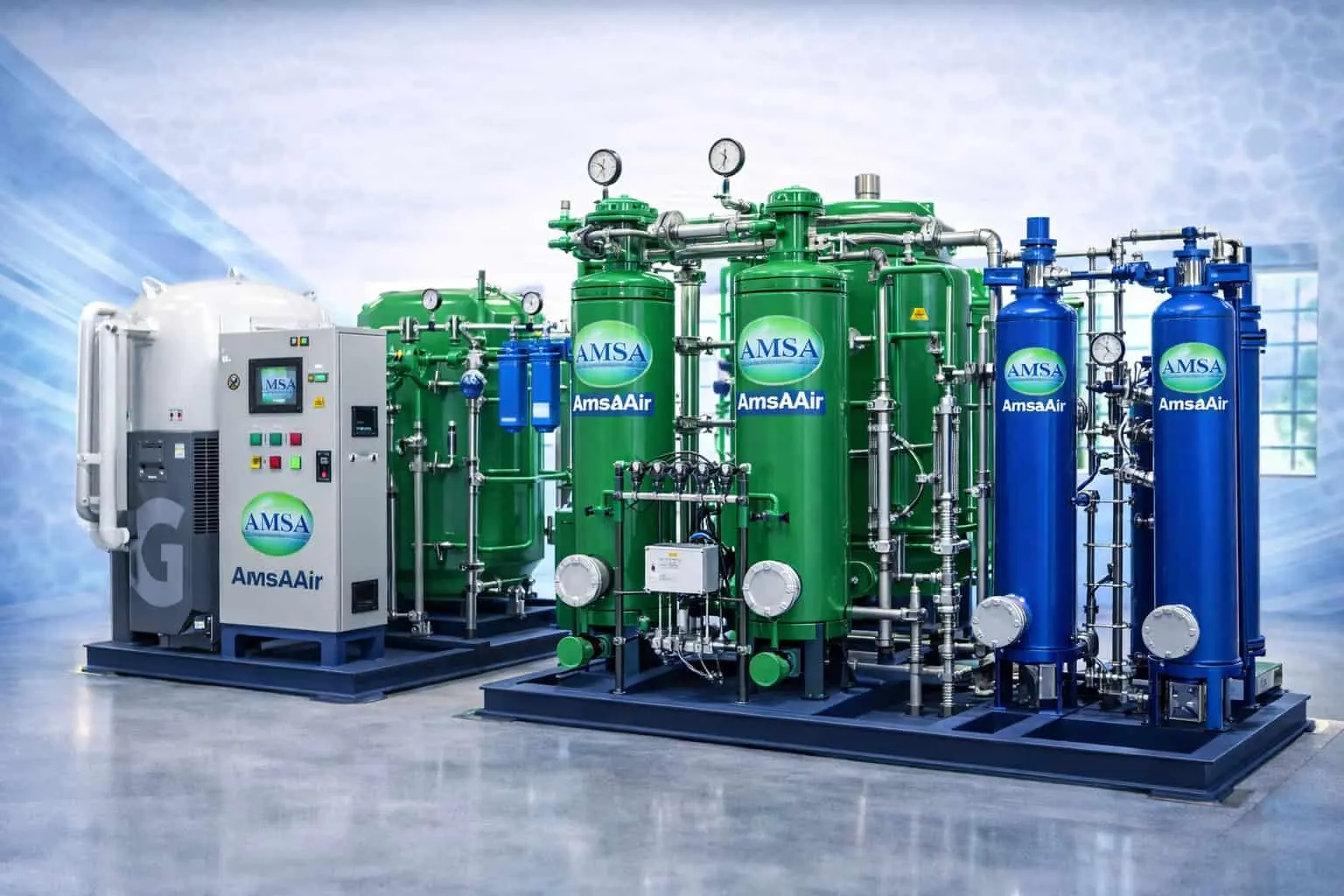

A CU De-Oxo Nitrogen Gas Plant is an advanced nitrogen purification system designed to produce ultra-high purity nitrogen gas up to 99.9999% with oxygen content ≤1 PPM.
This system is widely used in industries where extremely low oxygen levels are critical for product quality, safety, and process reliability.

AmsaAir Engineering Pvt. Ltd. designs and manufactures custom-engineered CU De-Oxo Nitrogen Gas Plants with fully automatic operation, high reliability, and long service life.

What is a CU De-Oxo Nitrogen Gas Plant?

A CU De-Oxo Nitrogen Gas Plant is an advanced purification system used to produce ultra-high purity nitrogen gas by removing trace oxygen from nitrogen. It is specially designed for applications where very low oxygen levels (≤1 PPM) are required.

In this process, nitrogen from a PSA nitrogen plant passes through a CU De-Oxo reactor containing a copper catalyst. A controlled amount of hydrogen reacts with the remaining oxygen and converts it into water vapor. This moisture is then removed by a high-efficiency dryer, resulting in dry, oxygen-free nitrogen gas with stable and consistent purity.

Key Features – CU De-Oxo Nitrogen Gas Plant

The CU De-Oxo Nitrogen Gas Plant is a highly advanced nitrogen purification system engineered to deliver ultra-high purity nitrogen gas up to 99.9999% by reducing residual oxygen content to ≤1 PPM. This plant is specially designed for industries where even trace amounts of oxygen can affect product quality, safety, or process stability.

The system works by passing nitrogen gas through a CU De-Oxidation reactor filled with a high-activity copper catalyst. A precisely controlled quantity of hydrogen is injected into the nitrogen stream, where it reacts with residual oxygen and converts it into water vapor. The generated moisture is then removed through a high-efficiency drying system, ensuring dry, stable, and ultra-pure nitrogen output.

The CU De-Oxo Nitrogen Gas Plant operates on a fully automatic, continuous 24×7 basis with PLC-HMI-based control, eliminating the need for manual intervention during normal operation. Optimized hydrogen dosing and energy-efficient design help minimize operating costs while maintaining consistent purity even during load variations. The plant is available in compact skid-mounted or containerized configurations, allowing easy installation and seamless integration with existing air compressor and nitrogen generation systems.

Built with robust industrial components, advanced safety interlocks, and alarm systems, the CU De-Oxo plant ensures safe and reliable performance over a long service life. Optional remote and mobile-based monitoring enables users to supervise and control complete plant operations anytime, anywhere, making it an ideal solution for critical industrial applications requiring ultra-high purity nitrogen.

Technical Specifications – CU De-Oxo Nitrogen Gas Plant

Nitrogen Purity: Up to 99.9999%
Oxygen Content: ≤ 1 PPM (Copper Catalyst De-Oxidation)
Nitrogen Flow Rate: As per customer requirement
Operating Pressure: 4 – 30 Bar (customizable)
De-Oxidation Method: Hydrogen reaction over CU (Copper) catalyst
Hydrogen Consumption: Very low & precisely controlled
Drying System: High-efficiency dryer for moisture removal
Control System: PLC / HMI-based, fully automatic
Operation Mode: Continuous, automatic (24×7)
Power Supply: 415V, 50Hz, 3-Phase
Plant Design: Skid-mounted / Containerized / Modular
Monitoring: Online oxygen analyzer (optional)
Installation: Indoor / Outdoor
Remote Monitoring: Optional mobile & remote access

Main Components of CU De-Oxo Nitrogen Gas Plant

PSA Nitrogen Generation Unit
High-performance PSA system for primary nitrogen production.
Hydrogen Injection & Precision Dosing System
Controlled hydrogen supply for efficient oxygen removal.
CU De-Oxo Reactor Vessel
A specially designed reactor for copper catalyst-based de-oxidation process.
Copper (CU) Catalyst Bed
High-activity copper catalyst to reduce oxygen level up to ≤1 PPM.
Gas Cooling & Heat Exchanger Unit
Removes heat generated during the hydrogen-oxygen reaction.
Moisture Separator System
Eliminates water vapor formed during the de-oxidation process.
High-Efficiency Desiccant Dryer
Ensures dry and ultra-pure nitrogen output.
Safety Valves & Protection Interlocks
Built-in safety mechanisms for secure hydrogen handling.
PLC / HMI Electrical Control Panel
Fully automatic control with alarms, monitoring, and optional remote access.

Applications of the CU De-Oxo Nitrogen Gas Plant

The CU De-Oxo Nitrogen Gas Plant is ideal for industries that require ultra-high-purity nitrogen with extremely low oxygen content (≤1 PPM). It is widely used in:

Electronics & Semiconductor Manufacturing
For oxidation-free production environments.
Pharmaceutical & API Production
To maintain strict quality and safety standards.
Specialty Chemical Processing Plants
Where oxygen presence can affect reaction stability.
Food Packaging & Modified Atmosphere Packaging (MAP)
To extend shelf life and preserve product quality.
Heat Treatment, Annealing & Sintering Furnaces
For controlled atmospheres with precise oxygen limits.
Lithium-Ion Battery Manufacturing
To prevent moisture and oxygen-related defects.
Metal Processing & Powder Metallurgy
For clean and consistent processing conditions.
Precision Welding & Brazing Applications
Where ultra-pure inert gas is critical.

Advantages of the CU De-Oxo Nitrogen Gas Plant

Ultra-High Purity Nitrogen Output
Produces nitrogen up to 99.9999% purity with ≤1 PPM oxygen.
Highly Efficient Oxygen Removal
Copper catalyst ensures reliable de-oxidation without pressure loss.
Stable & Continuous Operation
Designed for 24×7 industrial use with consistent performance.
Compact & Modular Design
Easy to install, integrate, and relocate if required.
Long Catalyst Life
A copper catalyst offers an extended service life with minimal degradation.
Low Operating & Maintenance Cost
Optimized hydrogen usage and energy-efficient system design.
Seamless Integration
Easily connects with existing PSA nitrogen generation systems.

Why Choose AmsaAir CU De-Oxo Nitrogen Gas Plant?

AmsaAir Engineering Pvt. Ltd. delivers custom-engineered CU De-Oxo Nitrogen Gas Plants tailored to specific process requirements and industry standards.
